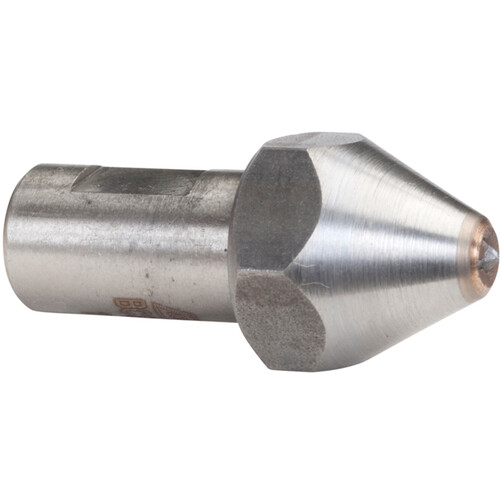

7/16″ × 1 7/16″Diamond Dressing Tool Indexable Single Point
| Type | Single Point | Maximum Compatible Wheel Diameter | 14″ |
| Shank Diameter | 7/16″ | Style | Indexable |
| Model No | BCSGUD5 |
Product Features
| Remarks | •These Indexable U-Dex-It tools contain specially selected diamonds to withstand increased ceramic grinding pressures •For dressing straight, tapered, and convex wheel forms; steeper 60 degree included angle head design for greater machine and part clearance produce forms with tighter tolerances •Ideal for centerless grinders; the head can be turned, using standard 5/8 In. wrench, through the hole in the side of the wheel guard without removing the guard •Use with ceramic and silicon carbide 11-14 In. wheel diameters; may also be used to dress aluminum oxide abrasives •Non-resettable; the choice when a resetting program is not feasible or low initial cost is the primary purchasing consideration •Our Norton stationary diamond dressing tool line is the industry's most comprehensive line of stock and made-to-order products to true (restore the wheel's profile) and dress (open to remove stock or close to finish, the face of the wheel). The line includes single point, multi-point (nib, grit tool), blade, form, toolroom, and cluster tools, and truing devices. | Country of Origin | USA |
Shipping Info
Package Weight
0.08
