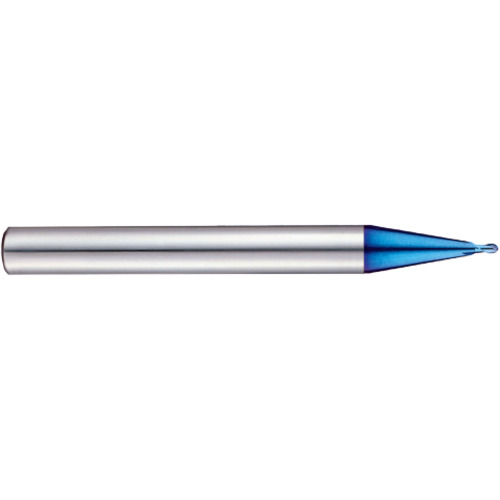

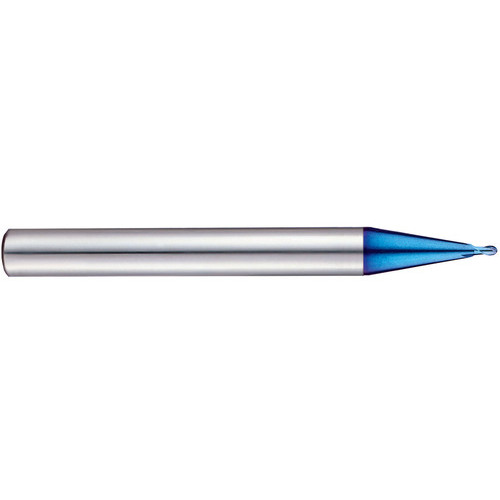

Ball Nose End Mill; 0.4 mm Dia. × 0.4 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; Blue Coating ; Series G8A53
BN End Mill; 0.4 mm Dia. × 0.4 mm LOC × 6 mm Shank Dia. × 50 mm OAL ; 2 FL ; Carbide ; AlTiSiN ; Series G8A53
| Cutting Diameter (DC) | 0.4 mm | Applicable Material | | Steel | Hard Materials | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 0.2 mm |
| Depth of Cut Maximum (APMX) | 0.4 mm | End Shape | Ball Nose |
| Overall Length (OAL) | 50 mm | Decimal Equivalent | 0.0157″ |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | AlTiSiN | Series/List # | G8A53 |
| Flute Count (NOF) | 2 | Cutting Direction (HAND) | Right Hand |
| Flute Helix Angle (FHA) | 30 Degrees | Center Cutting | Yes |
| Shank Type | Round |
Product Features
| Country of Origin | S.Korea |
