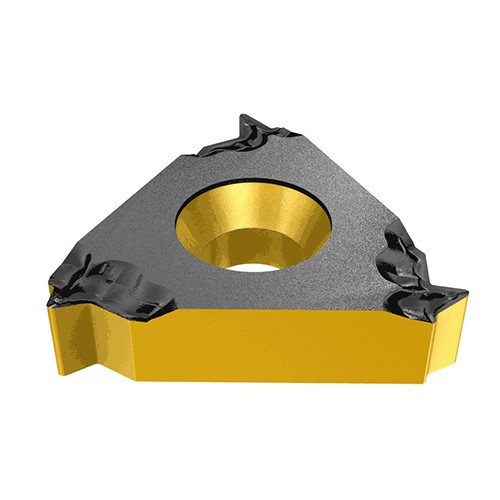

08IR 18 NPT IC228
Internal NPT (National Pipe Threads) full profile laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer, for steam, gas and water pipes.
| Thread Standard | THFT | | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |

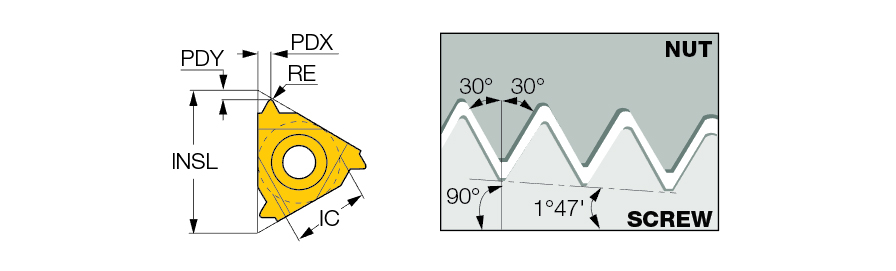

| Inscribed Circle Diameter (IC) | 0.197″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.324″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 18 | Cutting Item Count (CICT) | 1 |
| Corner Radius (RE) | 0.0024″ | Tool Type | Threading Regular Inserts |
| Grade | IC228 | Measurement Type | Inch |
| Coating | TiCN+TiN | Body Material | Carbide |
| Cutting Edge Material | Carbide | Thread Form Type (THFT) | NPT60 |
| Cutting Position | Internal | Profile Distance EY (PDY) | 0.0236″ |
| Application | | Internal Thread Milling | Internal Threading lay down | |
Product Features
| Family Description | Internal NPT (National Pipe Threads) full profile laydown threading inserts. IR/L - ground periphery and rake, IRB - with a chipformer and peripherally ground, IRM - with a chipformer, for steam, gas and water pipes. | Country of Origin | Israel |

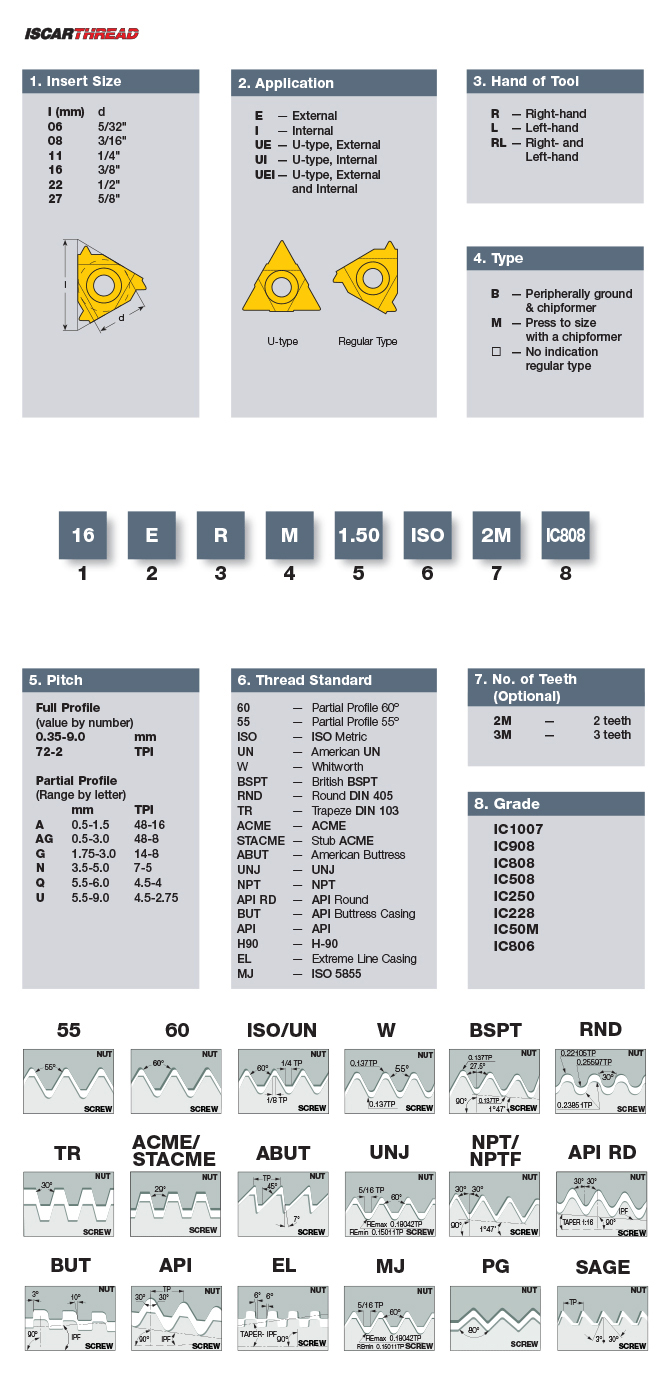

| Remarks | For Insert Identification System, click on More Info National Pipe Threads ANSI/ASME B1.20.1-1983 |
Shipping Info
LocalField10
0
Package Weight
0.003
