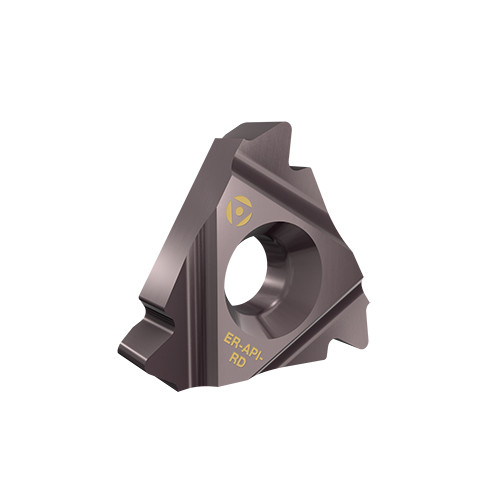

22ER 10 API RD AC22R
External Right Hand API Round Profile Laydown Threading Inserts
| Thread Standard | THFT | | Insert Style | Laydown (LT) |
| Inscribed Circle Diameter (IC) | 1/2″ | Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.87″ | Shape | 60° Triangle |
| Threads per Inch (TPI) | 10 Threads/" | Threads per Inch Minimum (TPIN) | 10 Threads/" |
| Grade | AC22R | Threads per Inch Maximum (TPIX) | 10 Threads/" |
| Coating | TiAlN | Tool Type | Threading Regular Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Application | | Ext Threading Laydown | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features
| Family Description | External Right Hand API Round Profile Laydown Threading Inserts | Country of Origin | USA |
Shipping Info
Package Weight
0.000
