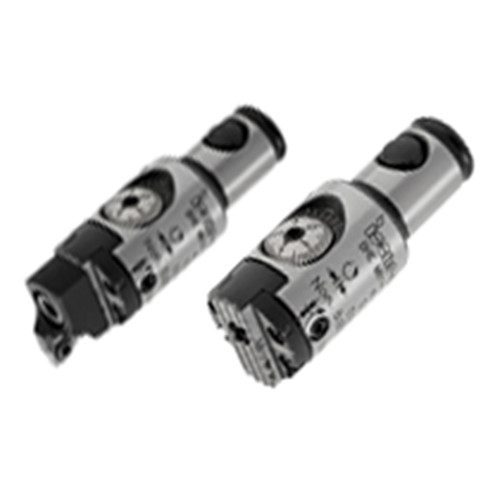

BHE MB63-63-89
Fine boring heads with the MB connection, 10 µm direct diametric adjustment and 2 µm by a vernier scale.

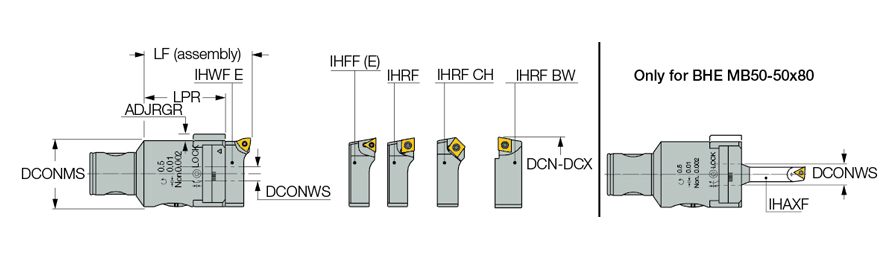

| Cutting Diameter Minimum (DCN) | 6 mm | Measurement Type | Metric |
| Cutting Diameter Maximum (DCX) | 125 mm | Weight of Item (WT) | 1 Kg |
| Functional Length (LF) | 89 mm | Rotational Speed Maximum (RPMX) | 6000 rpm |
| Connection Diameter Machine Side (DCONMS) | 63 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Through Hole |
Product Features
| Family Description | Fine boring heads with the MB connection, 10 µm direct diametric adjustment and 2 µm by a vernier scale. | Country of Origin | Italy |
| Remarks | Click on individual item, then on More Info to see split view of its spare parts. |
