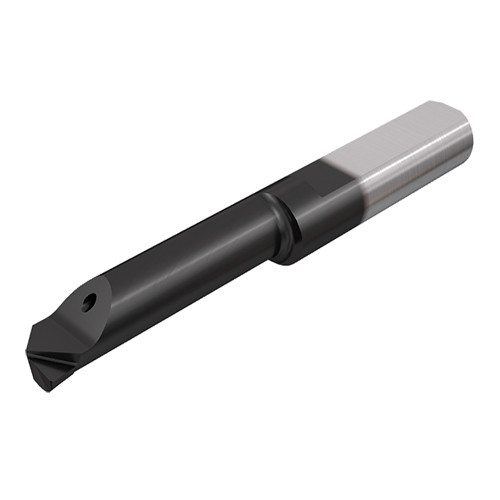

PICCO R 050.3-16N IC908
Inserts with inner coolant channel, for internal turning and chamfering.

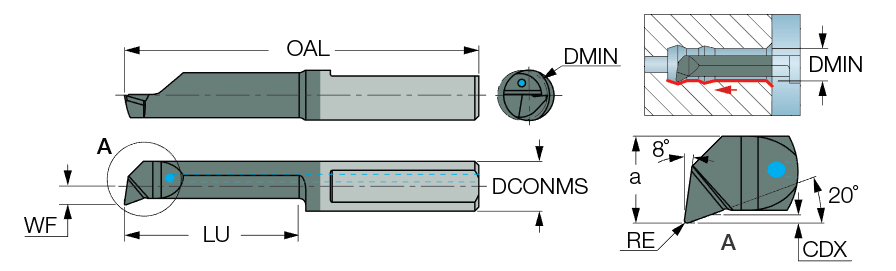

| Connection Diameter Machine Side (DCONMS) | 0.159″ | Functional Width (WF) | 0.024″ |
| Maximum Bore Diameter (DMAX) | 0.49″ | Usable Length (LU) | 0.591″ |
| Minimum Bore Diameter (DMIN) | 0.11″ | Overhang Minimum (OHN) | 0.123″ |
| Functional Length (LF) | 1.417″ | Body Material | Carbide |
| Reduced Body Diameter Length (LDRED) | 0.591″ | Cutting Edge Material | Carbide |
| Cutting Direction (HAND) | Right Hand | Style | Corner Radius |
| Coating | TiAlN | Length Group | Regular |
| Grade | IC908 | Series/List # | 601 |
| Application | | Int. Axial Turning | Int. Boring and Profiling | | Tool Type | Solid Carbide Turn Tool |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Measurement Type | Inch |
| Front End Width (a) | 0.102″ | Overall Length (OAL) | 4″ |
| Corner Radius (RE) | 0.004″ | Single / Double End | Single End |
| Cutting Depth Maximum (CDX) | 0.008″ |
Product Features
| Family Description | Inserts with inner coolant channel, for internal turning and chamfering. | Country of Origin | Germany |
| Remarks | Solid tools are suitable for PICCO-N / PICCO ACE-N type holders only |
