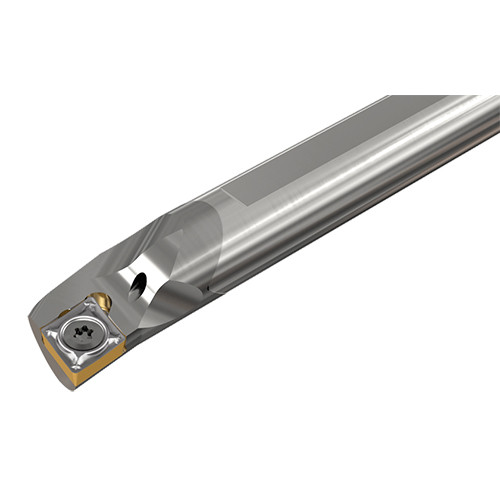

E16R SCLCR-06
Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter.
| Connection Diameter Machine Side (DCONMS) | 16 mm | Shank Type | Round Shank w/3 Flats |
| Overall Length (OAL) | 200 mm | Application | | Int. 80° Diamond 95° Approach | |
| Reduced Body Diameter Length (LDRED) | 32.5 mm | Rake Angle Axial (GAMP) | 0 Degrees |
| Shank Height (H) | 14 mm | Rake Angle Radial (GAMF) | -7 Degrees |
| Functional Width (WF) | 11 mm | Tool Type | Internal Indexble -Turn Tool |
| Master Insert Identification (MIID) | CCMT 060204-14 | Body Material | Carbide |
| Minimum Bore Diameter (DMIN) | 20 mm | Cutting Position | Internal |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Screw lock boring bars carrying 80° rhombic inserts with 7° clearance for 20 mm minimum bore diameter. | Country of Origin | Israel |
| Remarks | S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole |
Shipping Info
LocalField10
0
Package Weight
1.172
