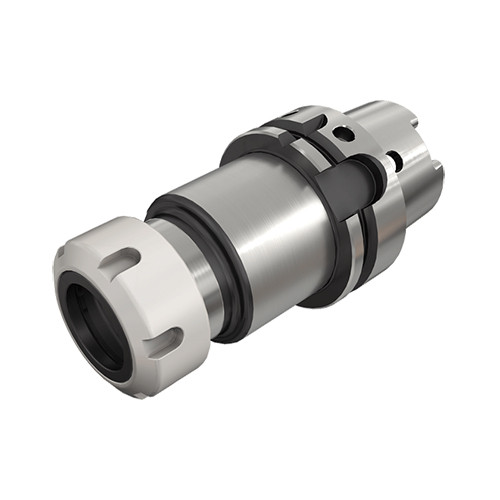

HSK A100 ER40X120
DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks.

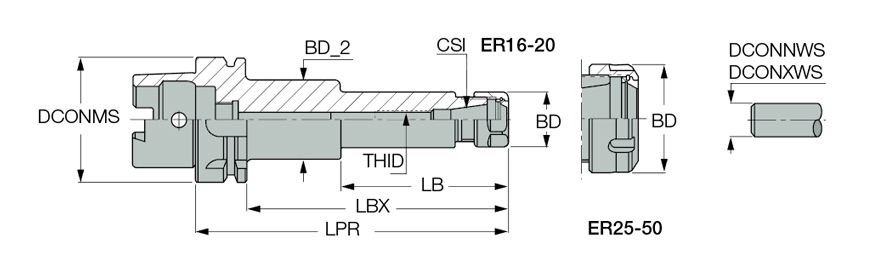

| Shank Size (SS) | 100 | Coolant Supply Property (CSP) | Through Hole |
| Connection Size (CSI) | ER40 | Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.118″ |
| Body Diameter (BD) | 2.48″ | Connection Diameter Maximum Workpiece Side (DCONXWS) | 1.024″ |
| Protruding Length (LPR) | 4.724″ | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 3.937″ | Body Material | Steel |
| Tool Type | HSK | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | DIN6499 ER collet chucks with HSK DIN69893 form A tapered shanks. | Country of Origin | Italy |

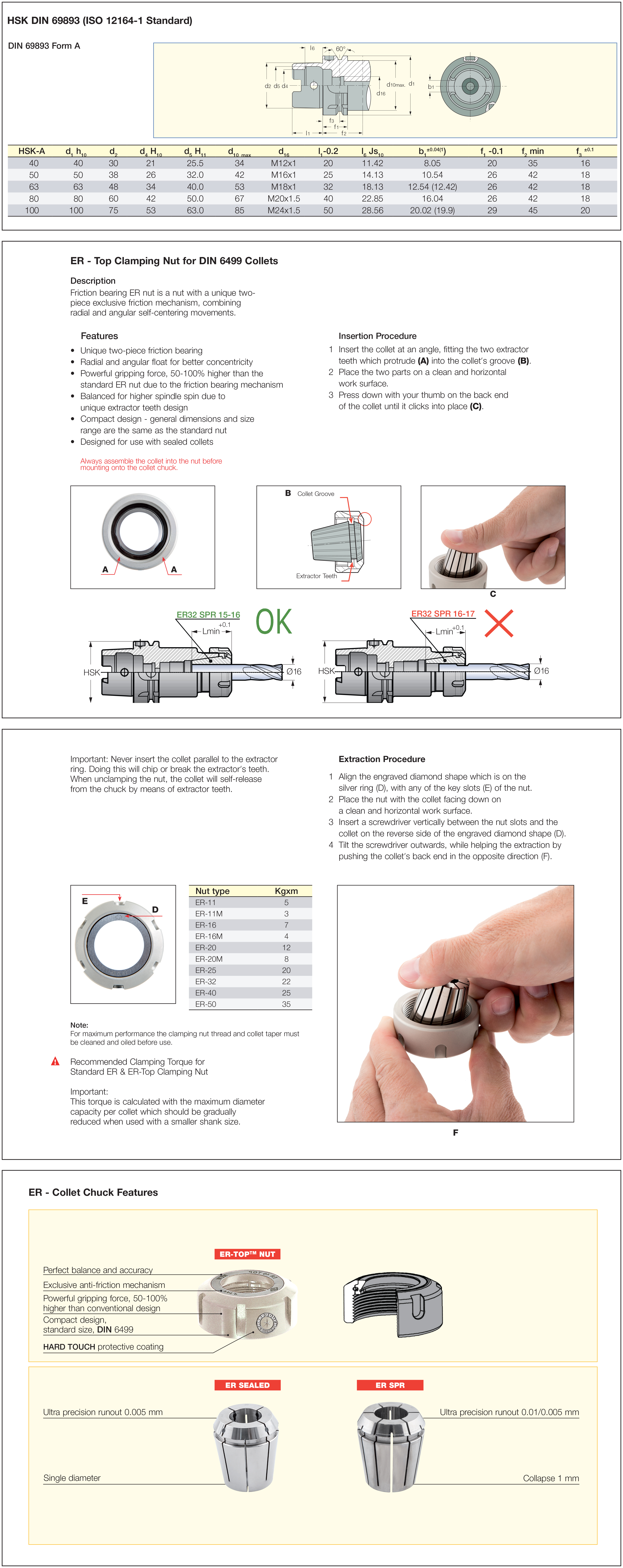

| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, Click on More Info. |
Shipping Info
Package Weight
7.857
