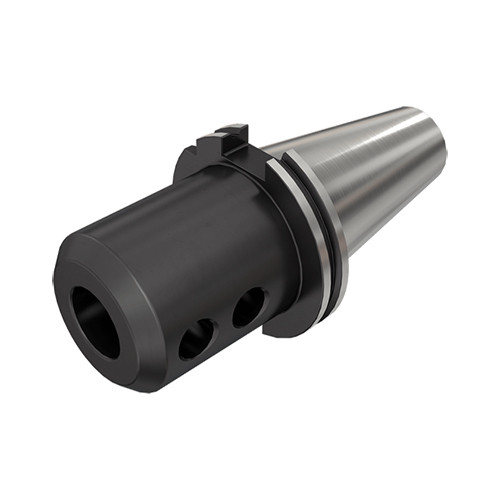

DIN69871 40 EM 6X 50

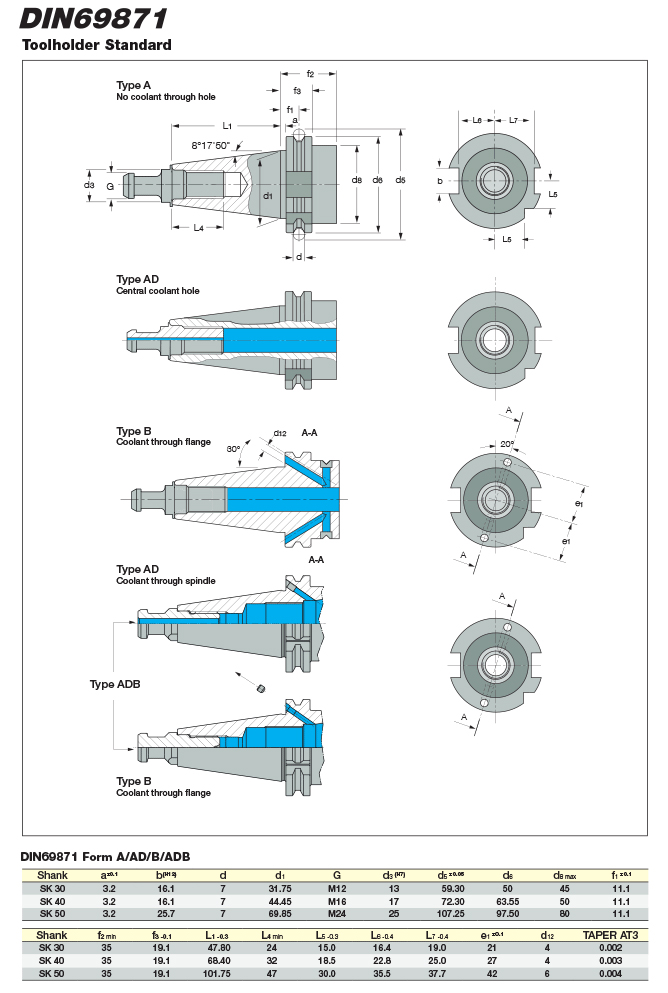

DIN 69871 form AD taper shanks holders with DIN 6359-HB for DIN 1835 form B Weldon shanks

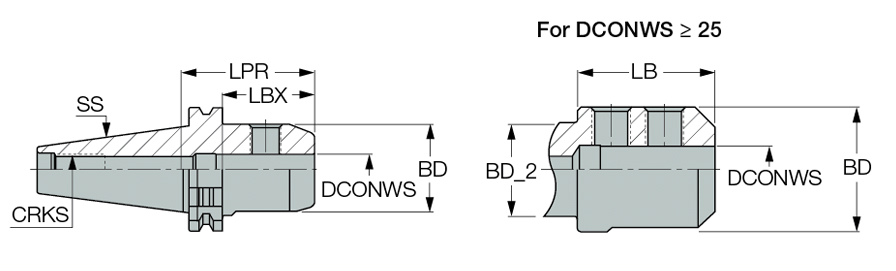

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 6 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 25 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 50 mm | Body Material | Steel |
| Overall Length (OAL) | 118.4 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | DIN 69871 form AD taper shanks holders with DIN 6359-HB for DIN 1835 form B Weldon shanks | Country of Origin | Italy |
| Remarks | B is the designation for coolant through flange. |
Shipping Info
Package Weight
2.059
