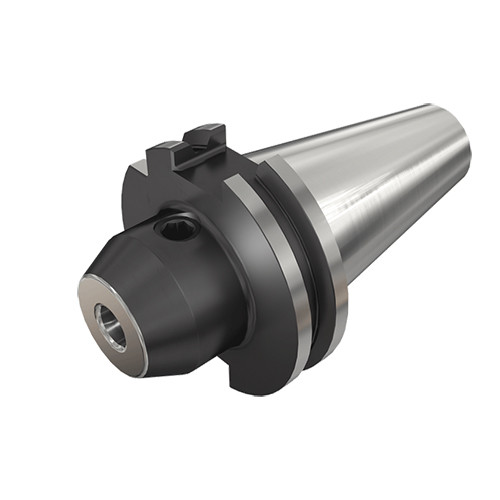

DIN69871 40 EM10X 45
Short side clamp endmill holders (DIN 6359-HB) with DIN 69871 form AD taper shanks for DIN 1835 form B weldon shanks

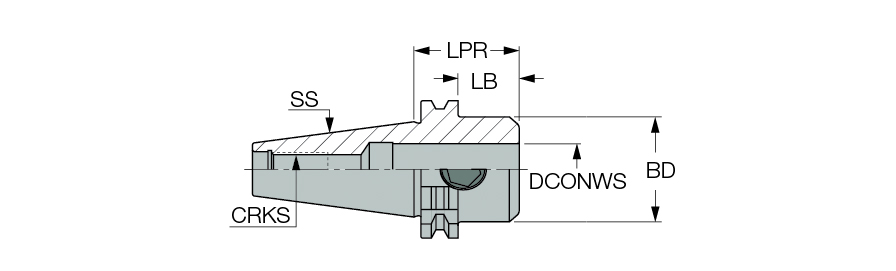

| Connection Size (CSI) | R8 | Measurement Type | Metric |
| Connection Diameter Workpiece Side (DCONWS) | 10 mm | Shank Size (SS) | 40 |
| Body Diameter (BD) | 35 mm | Tool Type | DIN 69871 |
| Protruding Length (LPR) | 45 mm | Body Material | Steel |
| Overall Length (OAL) | 113.4 mm | Connection Code Machine Side (CCMS) | DIN69871 |
| Coolant Supply Property (CSP) | Coolant Thru |
Product Features
| Family Description | Short side clamp endmill holders (DIN 6359-HB) with DIN 69871 form AD taper shanks for DIN 1835 form B weldon shanks | Country of Origin | Italy |
Shipping Info
Package Weight
2.205
