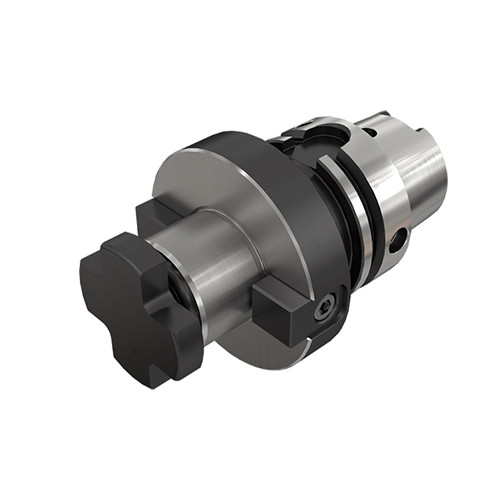

HSK A63 SEM27X60
ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks.

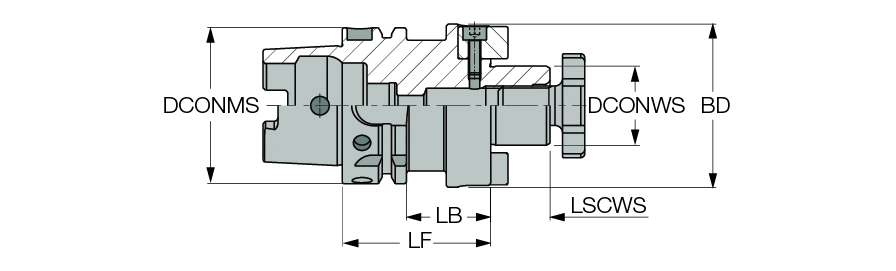

| Connection Diameter Machine Side (DCONMS) | 63 mm | Clamping Length Workpiece Side (LSCWS) | 21 mm |
| Connection Diameter Workpiece Side (DCONWS) | 27 mm | Material | Steel |
| Shank Size (SS) | 63 | Shell Mill Pilot Size | 1-1/2″ |
| Functional Length (LF) | 60 mm | Flange Diameter (DF) | 3.380″ |
| Body Length (LB) | 60 mm | Tool Type | HSK |
| Body Diameter (BD) | 58 mm | Measurement Type | Metric |
| Shank Standard | HSK A | Body Material | Steel |
| Shank Type | CAT | Protruding Length (LPR) | 6″ |
| Overhang Length (L2) | 6″ | Connection Code Machine Side (CCMS) | HSK |
| Hex Size | 5/8″ |
Product Features
| Family Description | ISO 3937 shell mill holders with HSK DIN69893 form A tapered shanks. | Country of Origin | Italy |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions,Click on More Info. For internal coolant through the holder, the related COOLANT SET to be ordered via Accessories (applicable to certain tools only) |
Shipping Info
Package Weight
3.276
