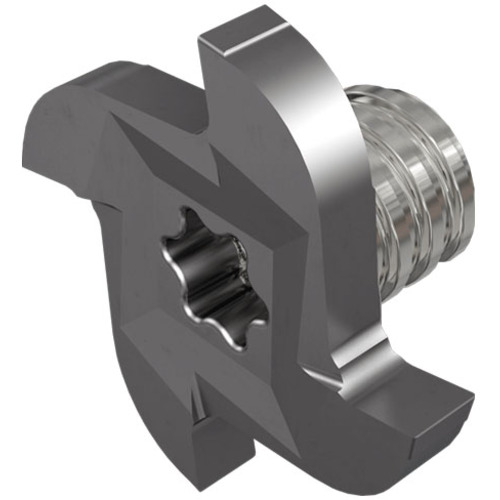

MM GRIT22K400-020-4T8 IC908
MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron.

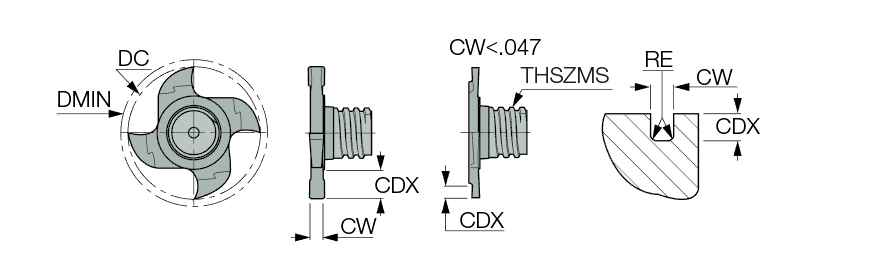

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Overall Length (OAL) | 0.476″ |
| Cutting Diameter (DC) | 0.854″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.0079″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Cutting Edge Material | Carbide |
| Cutting Depth Maximum (CDX) | 0.177″ | Body Material | Carbide |
| Cutting Width (CW) | 0.157″ | Corner Radius (RE) / Chamfer Width (CHW) | 0.12″ |
| Connection Diameter Machine Side (DCONMS) | 0″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0″ |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide small diameter, groove milling heads. "P" suffix for sharp cutting edge. "K" suffix for T-land on cutting edge, to be used on steel and cast iron. | Country of Origin | Israel |
| Remarks | Recommended for O-rings and retaining rings K - for general steel & cast iron machining P - for soft and gummy materials Modification options on request Do not apply lubricant to the threaded connection For clamping instructions, click on More Info |
Shipping Info
LocalField10
0
Package Weight
0.055
