DCN 0630-189-075R-3D

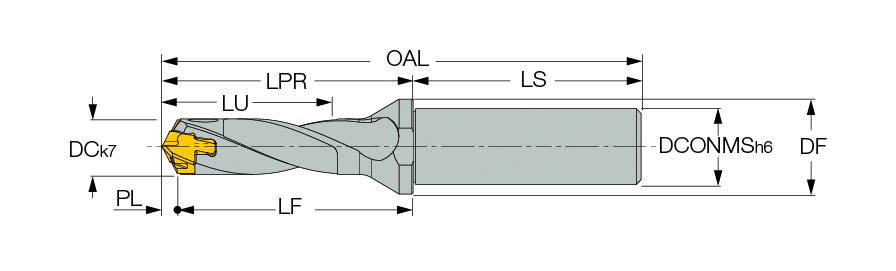

Drill; 0.63″ Dia. × 0.63″ Min. Dia. × 0.668″ Max. Dia. × 3/4″ Shank Dia. × 4.86″ OAL × 1.985″ LU × 1.97″ Shank Length ; Round Shank ; Series STAW

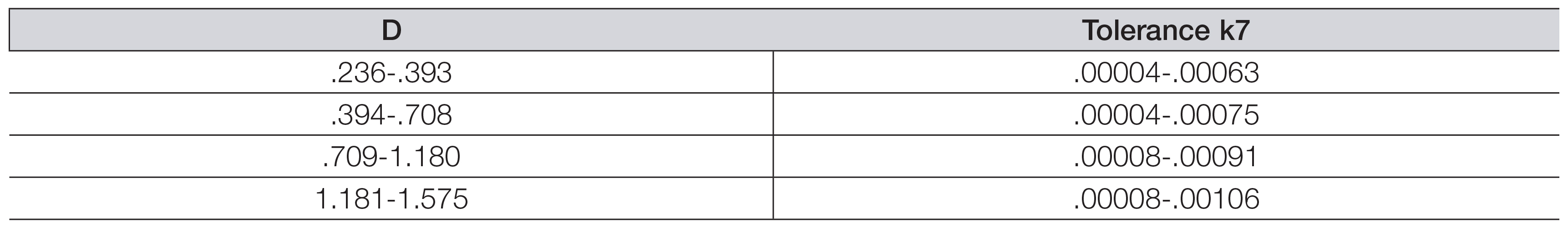

| Cutting Diameter (DC) | 0.63″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 1.985″ | Cutting Item Count (CICT) | 1 |
| Shank Type | Round | Measurement Type | Inch |
| Application | | Drilling | | Master Insert Identification (MIID) | ICP 160 |
| Tool Type | Indexable Insert Drills | Point Length (PL) | 0.095″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Series/List # | STAW |
| Insert Seat Size Code (SSC) | 16.0 | Angle | 140 Degrees |
| Cutting Diameter Minimum (DCN) | 0.63″ | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 0.668″ | Flange Diameter (DF) | 0.98″ |
| Protruding Length (LPR) | 2.89″ | Decimal Equivalent | 0.63″ |
| Functional Length (LF) | 2.775″ | Body Diameter Reduced (BDRED) | 0.98″ |
| Overall Length (OAL) | 4.86″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Shank Length (LS) | 1.97″ | Shank Diameter Tolerance (TCDMM) | h6 |
Product Features
| Family Description | SUMOCHAM 3xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | Country of Origin | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
