MM S-A-L100-C16-T10
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

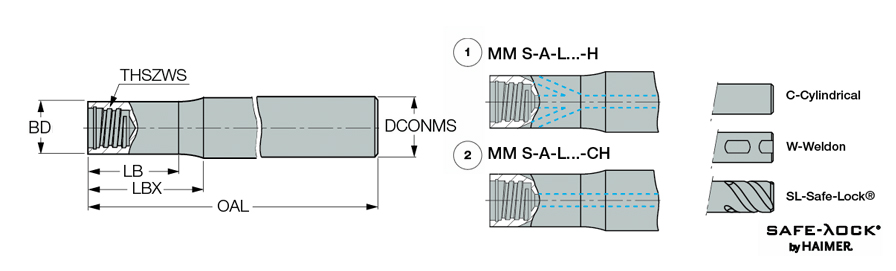

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T10 | Body Diameter (BD) | 15.3 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Body Length (LB) | 17.1 mm |
| Material | Carbide | Weight of Item (WT) | 0.15 Kg |
| Overall Length (OAL) | 100 mm | Measurement Type | Metric |
| Body Length Maximum (LBX) | 20 mm | Rotational Speed Maximum (RPMX) | 39000 Rev/min |
| Coolant Supply Property (CSP) | External | Body Material | Steel |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection |
