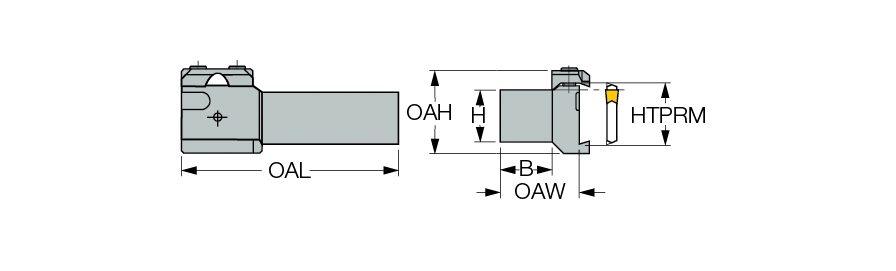

| Shank Height (H) | 1″ | Shank Standard | Square |
| Shank Width (B) | 1″ | Body Material | Steel |
| Overall Length (OAL) | 5.118″ | Tool Type | Square Shanks |
| Overall Height (OAH) | 1.81″ | Cutting Direction (HAND) | Left Hand |
| Prism Height (HTPRM) | 1.26″ | Measurement Type | Inch |
| Cutting Position | External | Tool Assembly Length (LTA) | 2.146″ |
Product Features

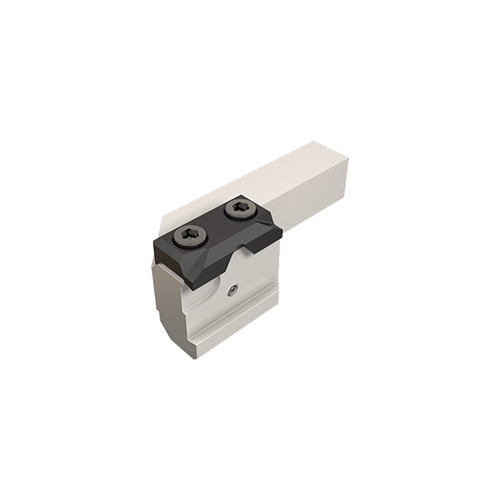

| Family Description | Holders for grooving, turning and parting blades. | Country of Origin | Israel |
| Remarks | Choose blade by HTPRM dimension |
Shipping Info
LocalField10
0
Package Length
5.75000
Package Width
2.50000
Package Height
2.50000
Package Weight
1.695
