SBTTL-SDJCL11-JHP

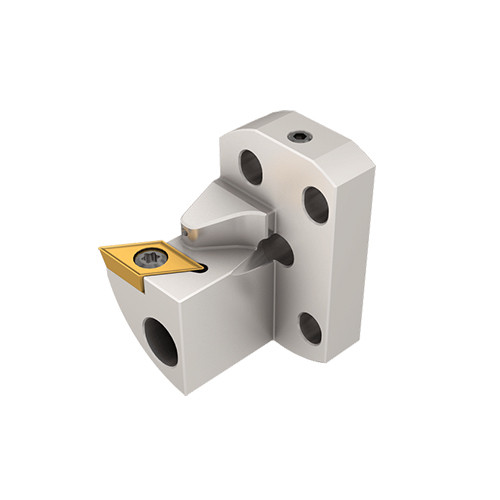

Screw lock JETCUT modular heads mount 7° clearance 55° rhombic inserts for back-end machining on Swiss-Type machines.

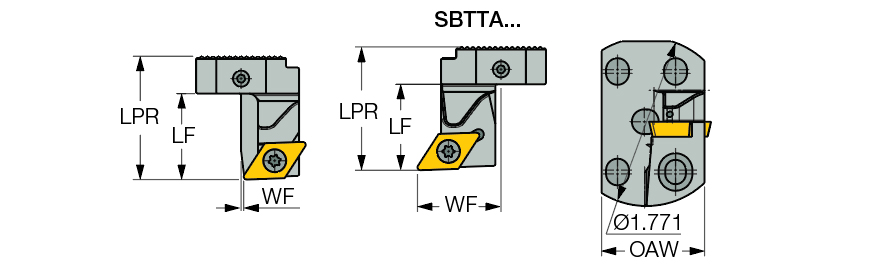

| Protruding Length (LPR) | 1.968″ | Application | | Ext. 55° Diamond 93° Axial | |
| Functional Length (LF) | 1.575″ | Body Diameter (BD) | 1.7716″ |
| Functional Width (WF) | 0.028″ | Body Material | Steel |
| Inscribed Circle Diameter (IC) | 3/8″ | Tool Type | Tapered Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand | Measurement Type | Inch |
Product Features
| Family Description | Screw lock JETCUT modular heads mount 7° clearance 55° rhombic inserts for back-end machining on Swiss-Type machines. | Country of Origin | Germany |
