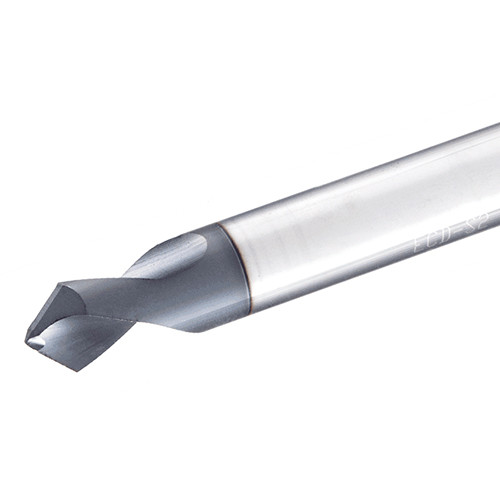

ECD-S2 040/60C04-50 IC08
Two flute chamfering, countersinking and spot drilling s olid carbide endmills.
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Edge Material | Carbide |
| Application | | Chamfering | Countersinking | Drill Mill | Drilling | Slanted Shoulder & Chamfer | | Coating | Uncoated |

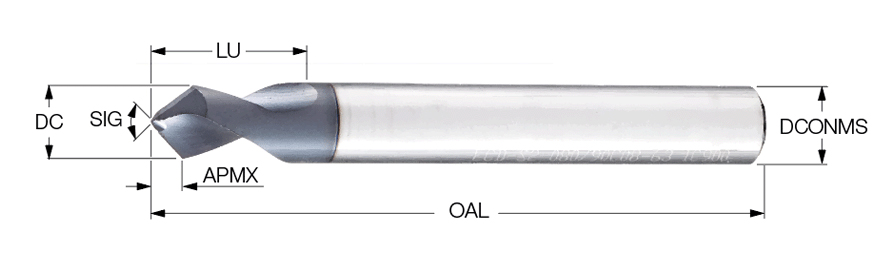

| Cutting Diameter (DC) | 4 mm | Grade | IC08 |
| Usable Length (LU) | 7.8 mm | Shank Type | Round |
| Flute Count (NOF) | 2 | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 2.75 mm | Measurement Type | Metric |
| Overall Length (OAL) | 50 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 4 mm | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | Two flute chamfering, countersinking and spot drilling s olid carbide endmills. | Country of Origin | Israel |
Shipping Info
Package Weight
12
