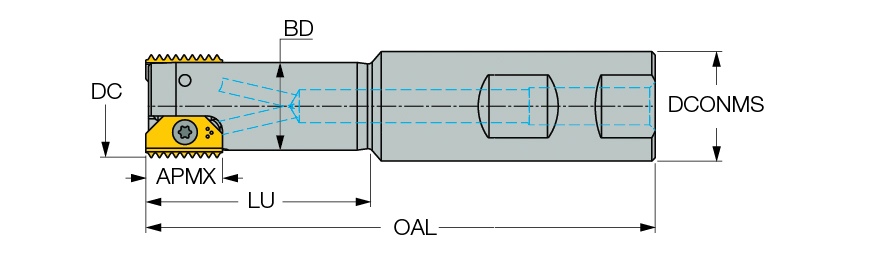

| Cutting Diameter (DC) | 20 mm | Body Material | Steel |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Depth of Cut Maximum (APMX) | 14 mm | Application | | External Thread Milling | Internal Thread Milling | |
| Overall Length (OAL) | 93 mm | Tool Type | Indexable thread mills |
| Flute Count (NOF) | 3 | Measurement Type | Metric |
| Usable Length (LU) | 41 mm | Connection Code Machine Side (CCMS) | Weldon |

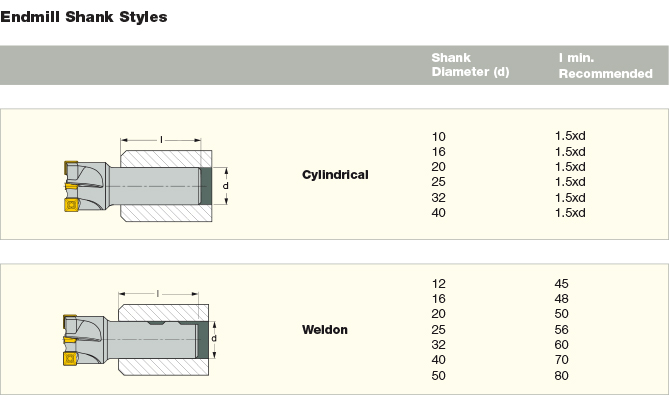

| Shank Type | Weldon | Body Diameter (BD) | 16 mm |
Product Features

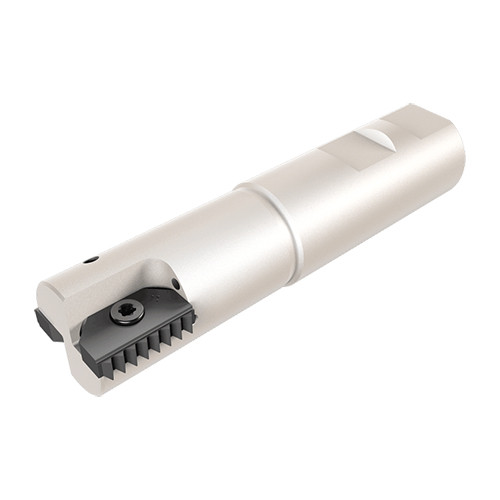

| Family Description | Multi insert threading endmills with Weldon shanks. | Country of Origin | Israel |
| Remarks | For adaptation click on More Info. All endmills are equipped with a bore for internal coolant Tool cutting diameter should not exceed 2/3 of thread bore diameter |
Shipping Info
Additional Fees and Notes
0
Package Weight
234
Related Documentation
Minimum bore should be one-third larger than D. All endmills are equipped with a bore for coolant through.
