P290 ACK1.5-3-3.5-W150-18

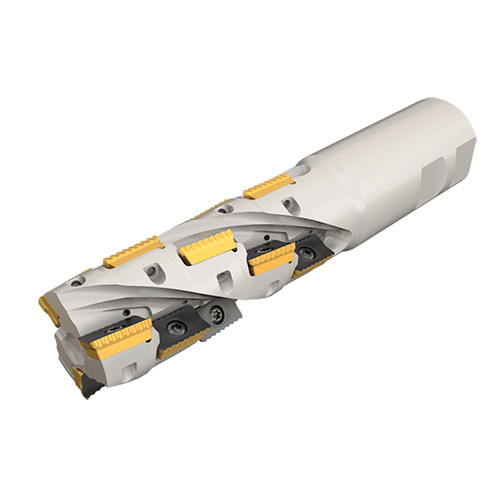

Extended flute endmills carrying .472 and .708″ long edged inserts.
| Application | | Rampdown | Shouldering | | Cutting Depth | 4.33″ |
| Cutting Item Count (CICT) | 15 | Master Insert Identification (MIID) | P290 ACKT 1806PDR-FW |

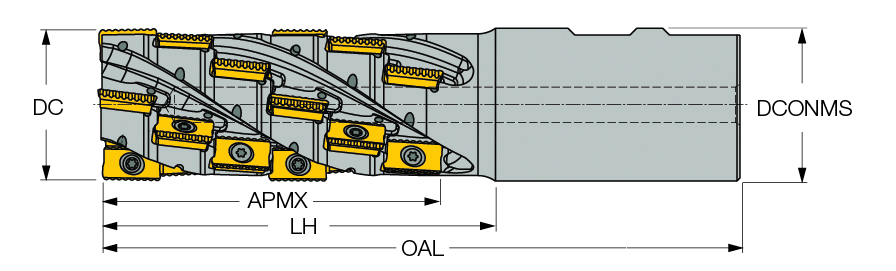

| Depth of Cut Maximum (APMX) | 3-1/2″ | Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Diameter (DC) | 1-1/2″ | Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Body Material | Steel |
| Overall Length (OAL) | 7.09″ | Tool Type | 90° Extended flute endmills |

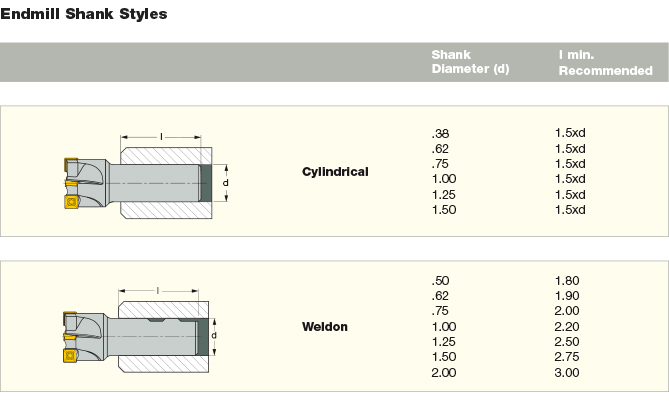

| Cutting Length | 3-1/2″ | Connection Code Machine Side (CCMS) | Weldon |
| Number of Teeth | 16 |
Product Features
| Family Description | Extended flute endmills carrying .472 and .708″ long edged inserts. | Country of Origin | Israel |
Shipping Info
LocalField10
0
Package Weight
2.334
