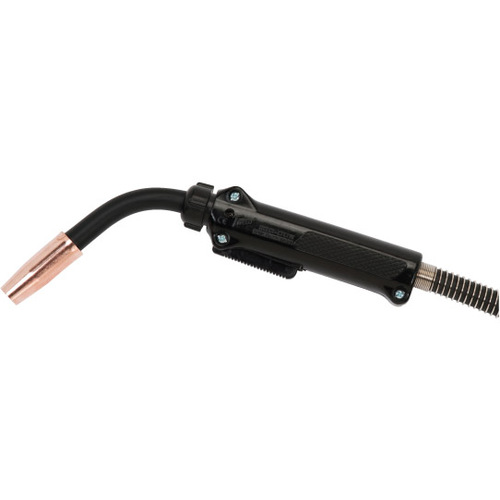

‎Tweco 180 Amp Classic No. 1 .030″ - .035″ Air Cooled Professional MIG Gun - 15' Cable/Miller Style Connector

Item # ES0210101135

UNSPSC: 23271700

Brand: Esab

MFG#: 10101135

Type

MIG Gun

Minimum Wire Outside Diameter

0.03″

For Use With

Solid | Flux Cored Gas Shielded | Flux Cored Self-Shielded |Aluminum

Current

180 Amp

Cable Length

15 feet

Wire Size

‎0.030″-0.035″

Maximum Wire Outside Diameter

0.035″

Series

Professional Classic No. 1

Product Features

Remarks

Industry standard for 40+ years, oval shaped handle reduces grip required to manipulate MIG gun position
Balanced to pivot at the center of the handle for ease of use in different welding positions, reduces operator fatigue
Gun hanger located at the bottom for ease of resting gun when not in use
Heavy-duty design for industrial application environments using special plastic composition for high impact crush-resistant handle
Steel spring strain relief provides support to the Cablehoz coming out the rear of the handle to minimize wire feed issues
Mechanical connection of conductor tube and Cablehoz within the handle providing excellent current path to the end of the contact tip
Two (2) ball-point screws are used to secure the Cablehoz and conductor tube in place
Trigger contains silver plated contacts with a self cleaning action every time the trigger is engaged and disengaged
Neoprene insulated quick-change conductor tubes swivels 360 degrees
Enhanced direct plug capabilities
Durable and dependable for industrial applications heavy-duty design, high impact resistant handle and components, three layer conductor tube construction (copper tube/silicon-resin glass insulator/metal jacket)
Field repairable: Split-half handle case provides access for ease of repair - easily repair Cablehoz, no additional connectors required
Improved performance with longer life consumables wide selection of front end consumables available, heavy-duty contact tips in high heat applications offered
Lower inventory carrying costs: Interchangeable front end consumables between Tweco Spray Master series and Tweco Professional No. Series

Country of Origin

Mexico

Shipping Info

Package Weight
