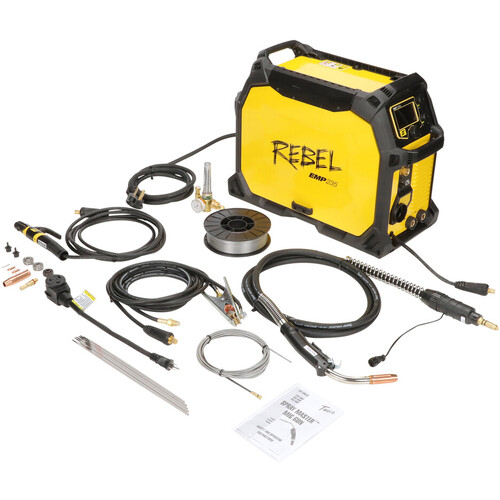

ESAB Rebel/Rebel EMP 235ic Multi-Process Welder, 120/230 Volt, Single Phase

Item # ES020558012702

Brand: Esab

MFG#: 0558012702

Type

Multi-Process

Duty Cycle

‎CC: Stick - 120 VAC - 85 Amps At 23.4 V - 40% Duty Cycle | CC: Stick - 230 VAC - 210 Amps At 28.4 V - 40% Duty Cycle | CC: TIG - 120 VAC - 130 Amps At 15.2 V - 40% Duty Cycle | CC: TIG - 230 VAC - 240 Amps At 19.6 V - 40% Duty Cycle | CV: MIG/Flux Cored - 230 VAC - 235 Amps At 25.75 V - 40% Duty Cycle | CV: MIG/Flux Cored - 120 VAC 130 Amps At 20.5 V - 20% Duty Cycle (20A Circuit Breaker)

Output Current

250 A

Frequency

50/60 Hz

Input Current

120/230V

Included

AMP Rating

‎5-250 A

Standards

IP23S

Phase

1 Phase

Product Features

Remarks

Exlcusive sMIG Technology - innovative "smart-MIG" feature continuously learns and adapts to the operator's welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders
Innovative Color LCD display has larger display screen and higher pixel density to provide a more clear view of the TFT screen than other light industrial welders; loaded with exclusive features: on-demand availability of the user's manual, listing of spare parts - all in multiple languages
Power to Perform - have the confidence with Rebel 235ic to run the full range of .035 in. wire- short arc and spray transfer. Also up to .045 in solid wire and up to .052 in. cored wire. Plus, rods up to 5/32 in. and TIG rods up to 3/16 in.
110V and 230V dual input voltage
Weld parameter storage
Trigger lock
Short arc and Spray transfer capable
4″, 8″ and 12″ spool capable
Hot start and Arc Force (Stick mode only)
Voltage trim, Inductance, Burn back, Pre-flow/Post-Flow Adjustment Capable (MIG mode only)
Lift arc (TIG mode only)

Country of Origin

China

Shipping Info

Package Weight
