C8 SRKIN 8X90 CX

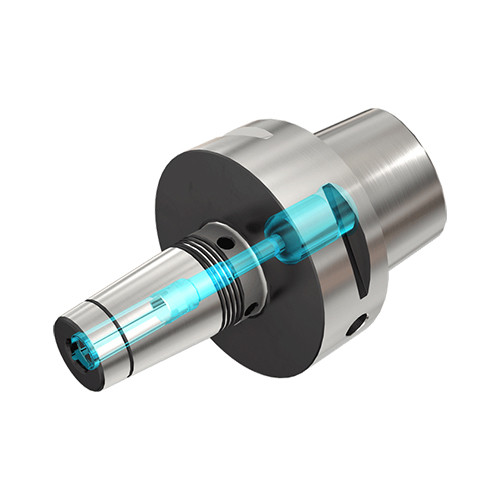

Shrink Fit Holder ; 8 mm Hole Dia. ; 80 mm Shank Dia. ; 27 mm Body Dia. ; Series SHRINK

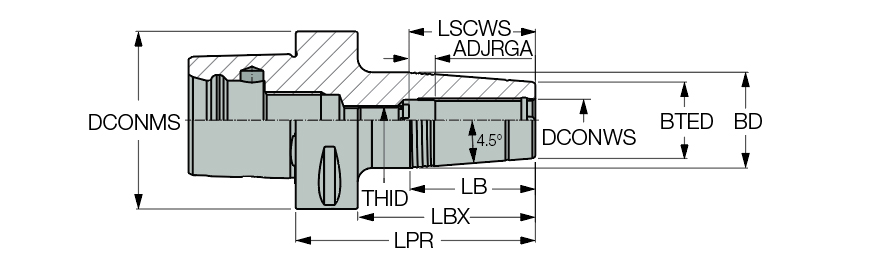

| Connection Diameter Machine Side (DCONMS) | 80 mm | Protruding Length (LPR) | 90 mm |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Body Length Maximum (LBX) | 60 mm |
| Shank Size (SS) | 80 | Clamping Length Workpiece Side (LSCWS) | 34 mm |
| Body Length (LB) | 38.1 mm | Series/List # | SHRINK |
| Body Diameter (BD) | 27 mm | Measurement Type | Metric |
| Body Taper End Diameter (BTED) | 21 mm | Body Material | Steel |
Product Features
| Family Description | Thermal shrink chucks with CAMFIX (ISO 26623-1) tapered shank and jet coolant grooves along the shank bore. Suitable for solid carbide, HSS and steel tools with h6 tolerance | Country of Origin | Israel |
| Remarks | Use only inductive heating device for SRKIN holders ISCAR cannot guarantee an unbalance value less than 1 gr x mm For shrink units information, Click on More Info Preset screw CX allows supply of coolant via JET channels - do not remove |
Shipping Info
Package Weight
4.515
