ST 25X200 SRK 8

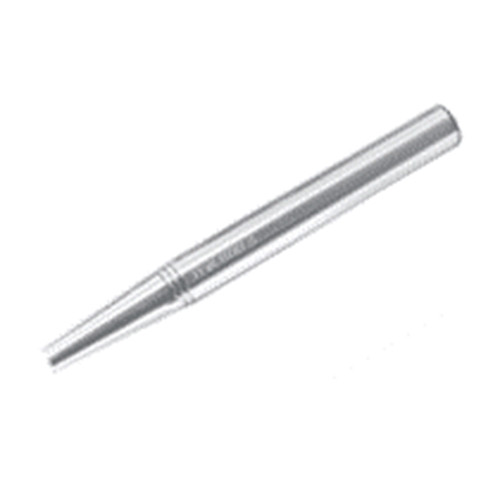

Shrink Fit Holder ; 8 mm Hole Dia. ; 25 mm Shank Dia. ; Series SHRINK

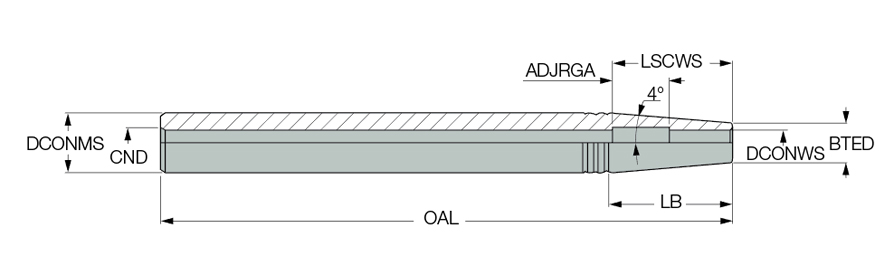

| Connection Diameter Machine Side (DCONMS) | 25 mm | Coolant Supply Property (CSP) | Through Hole |
| Connection Diameter Workpiece Side (DCONWS) | 8 mm | Clamping Length Workpiece Side (LSCWS) | 40 mm |
| Body Length (LB) | 79 mm | Series/List # | SHRINK |
| Body Taper End Diameter (BTED) | 14 mm | Measurement Type | Metric |
| Protruding Length (LPR) | 144 mm | Tool Type | Cylindrical Shanks |
| Overall Length (OAL) | 200 mm | Body Material | Steel |
| Shank Standard | ST |
Product Features
| Family Description | Thermal chuck collets with straight shanks. To be used for carbide tools only | Country of Origin | Israel |
Shipping Info
Additional Fees and Notes
0
Package Weight
1.327
