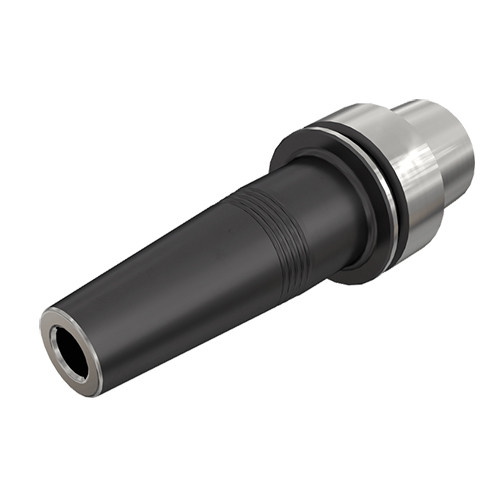

HSK E50 SRK3/8X3.000
SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only.

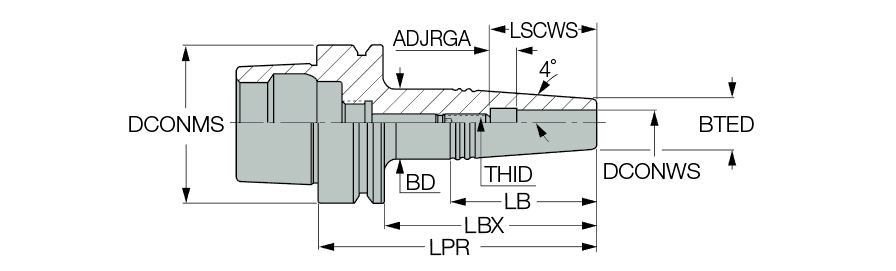

| Connection Diameter Machine Side (DCONMS) | 1.969″ | Shank Standard | HSK E |
| Connection Diameter Workpiece Side (DCONWS) | 3/8″ | Series/List # | SHRINK |
| Shank Size (SS) | 50 | Measurement Type | Inch |
| Body Length (LB) | 2.373″ | Tool Type | HSK |
| Protruding Length (LPR) | 4.024″ | Body Material | Steel |
| Overall Length (OAL) | 5.008″ | Connection Code Machine Side (CCMS) | HSK |
Product Features
| Family Description | SHRINKIN, thermal chuck collets with HSK DIN69893 Form E tapered shanks for solid carbide tools only. | Country of Origin | Israel |
| Remarks | A cooling tube must be used with all coolant through HSK spindles (to be ordered separately). For shank dimensions, click on More Info. |
Shipping Info
Package Weight
1.382
