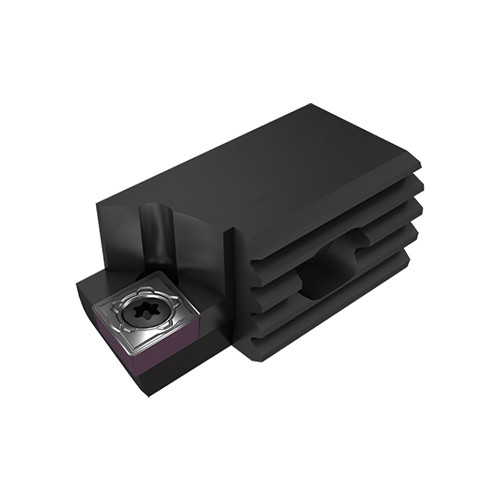

IHRF 20-25BW
Back face turning toolholders for BHF fine boring heads.
| Body Diameter (BD) | 0.63″ | Body Material | Steel |
| Connection Diameter Minimum Workpiece Side (DCONNWS) | 0.787″ | Application | | Int. Back Turning 80° Diamond | |
| Connection Diameter Maximum Workpiece Side (DCONXWS) | 0.984″ | Tool Type | Indexble Boring heads |
| Body Length (LB) | 1.083″ | Nose Diameter | 3/4″ |
| Shank Size (SS) | MB16 | Cutting Diameter Minimum (DCN) | 0.787″ |
| Cutting Diameter Maximum (DCX) | 0.984″ | Internal/External | Internal |
| Shank Size Machine Side | 3/4″ | Measurement Type | Inch |
| Master Insert Identification (MIID) | CCMT 2... | Grade | 4551104 |
Product Features
| Family Description | Back face turning toolholders for BHF fine boring heads. | Country of Origin | Italy |

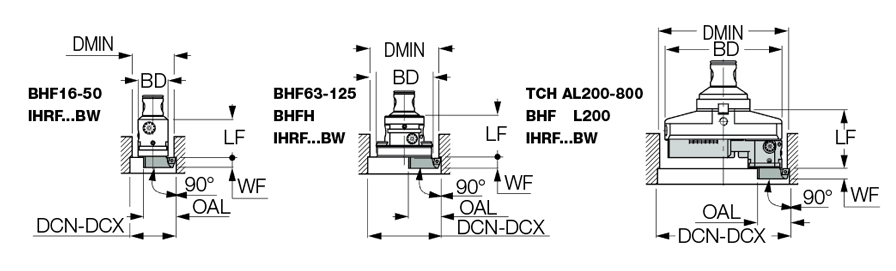

| Remarks | DMIN=(min bore diameter)=(DC+BD+.040)/2 DC=Cut diameter BD=Size of the boring head being used |
Shipping Info
Package Weight
0.044
