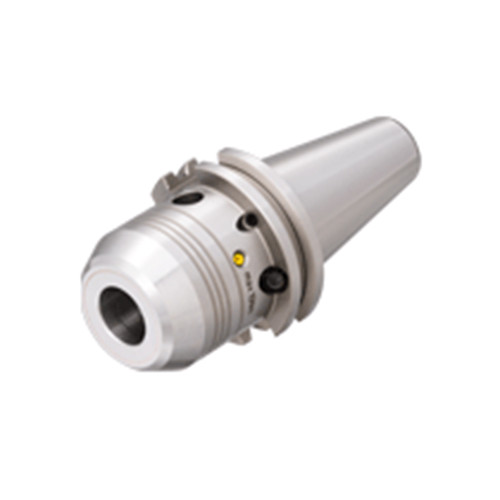

CAT40 HYDRO 1/4X2.677
Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks.

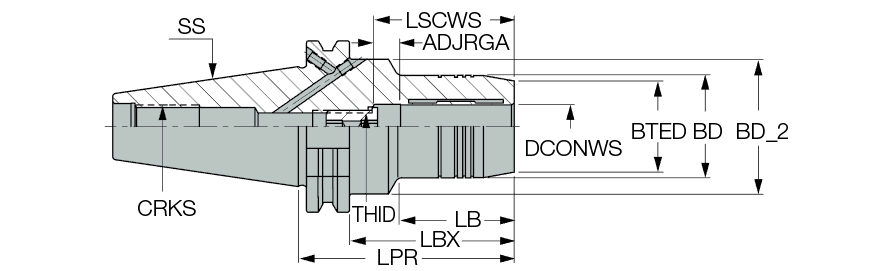

| Connection Diameter Machine Side (DCONMS) | #63 | Shank Size (SS) | 40 |
| Body Length Maximum (LBX) | 3.38″ | Tool Type | DIN 69871 |
| Body Length (LB) | 1.299″ | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Workpiece Side (DCONWS) | 1/4″ | Nose Length | 1.5354″ |
| Body Diameter (BD) | 1.023″ | Measurement Type | Inch |
| Protruding Length (LPR) | 2.677″ | Body Material | Steel |
| Overall Length (OAL) | 4.64″ | Connection Code Machine Side (CCMS) | CAT |
| Shank Type | HSK |
Product Features
| Family Description | Hydraulic chucks with coolant holes and Caterpillar form ADB tapered shanks. | Country of Origin | Germany |

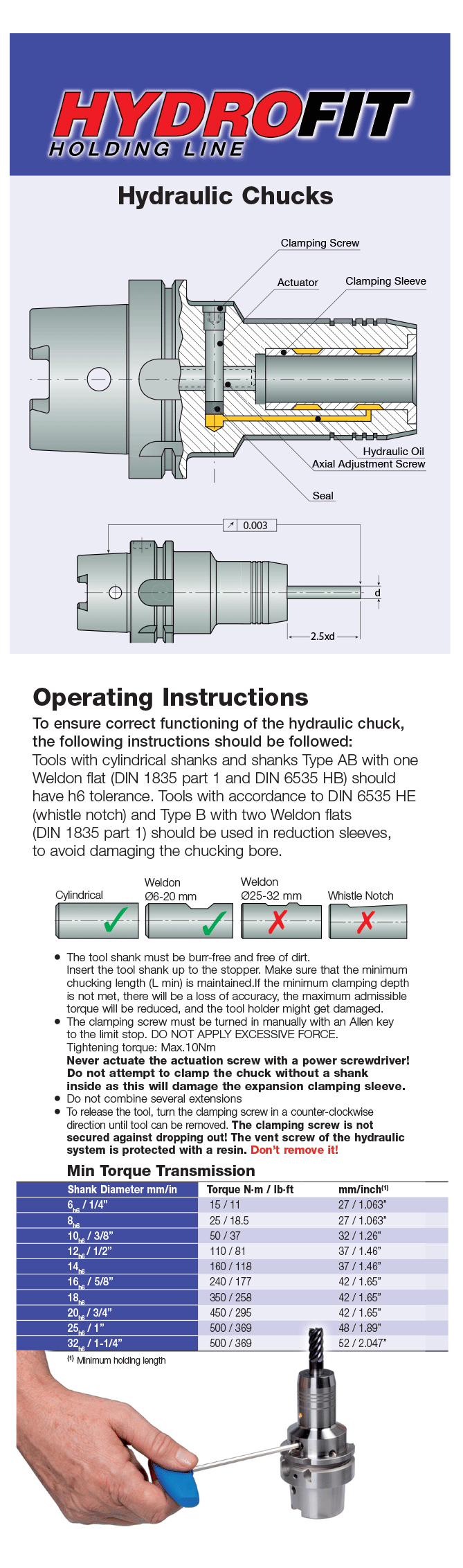

| Remarks | Chucking forces will be reduced by 25% if reduction sleeves are used. Note: Reduction sleeves are available for 3/4 and 1-1/4 bore diameters (order separately). The coolant passages in the B type flange are blocked withscrews which can be removed when required. Clamping wrench (wrench HYDRO HEX 4) and test bar to be ordered separately. |
Shipping Info
Package Weight
2.509
