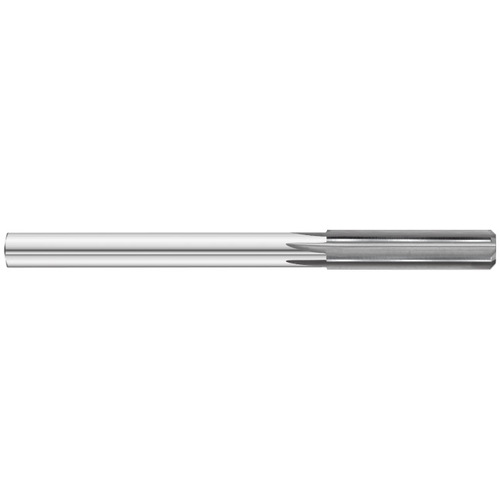

1400STB.0310.3750 x1.500RM ST 4 FL

Item # FT8014003

UNSPSC: 23241611

Brand: Fullerton Tool

MFG#: 14003

Additional Canadian Tariff of 25 %

Virtual Catalog

Cutting Diameter (DC)

#68

Cutting Edge Material

Carbide

Connection Diameter Machine Side (DCONMS)

0.031″

Shank Type

Round

Flute Count (NOF)

Flute Type

Straight

Overall Length (OAL)

‎1-1/2″

Coolant Supply Property (CSP)

External

Cutting Direction (HAND)

Right Hand

Length Chip Flute (LCF)

3/8″

Flute Helix Angle (FHA)

0 Degrees

Decimal Equivalent

0.0310″

Coating

Uncoated

Product Features

Remarks

Straight Flutes

Number of Flutes Varies by Diameter

Carbide Reamers

Manufactured Using Female and Male Centers for Improved Concentricity

Male centers on items up to .1124″ (2.86mm)

45° lead angle

Short and standard lengths

Standard Uncoated

Metric and Inch Based Tools

Cutter Diameter up to .250″: +0.0002″ -.0000″ / over: .2501″: +0.0003″ -.0000″ (or up to 6.35mm: +0.005mm -.000mm / over 6.351mm: +0.008mm -.000mm)

Shank Diameter: +.0005″ -.0005″ (+.013mm -.013mm)

Steel Shanks on Items over .2812″ Cutting Diameter and 4.000″ in Length

Country of Origin

USA

Shipping Info

Package Weight

.006
