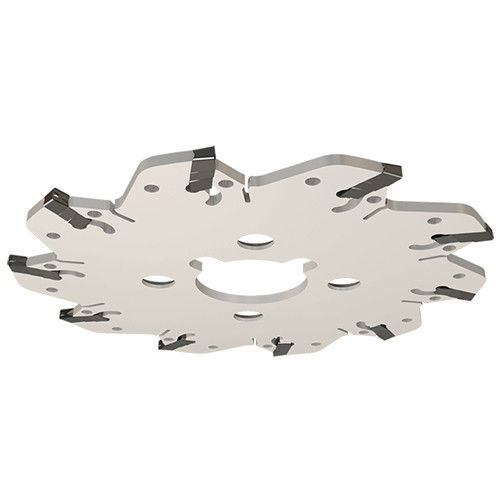

GM D100-3DG-1.000K
Slitting cutters carrying self clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum.
| Cutting Diameter (DC) | 3.94″ | Master Insert Identification (MIID) | GIP 3.00 |
| Cutting Item Count (CICT) | 6 | Application | | Side Slotting | Slitting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 6 | Rotational Speed Maximum (RPMX) | 800 Rev/min |
| Cutting Depth Maximum (CDX) | 1.14″ | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 0.095″ | Measurement Type | Inch |
| Cutting Width Maximum (CWX) | 0.132″ | Body Material | Steel |
| Cutting Width Minimum (CWN) | 0.106″ | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters carrying self clamped inserts. When used with GIM or GIMY single ended inserts, cutting depth is not limited. GIP and GIF double-ended inserts can be used for DOC less than 12mm, GIPA inserts for aluminum. | Country of Origin | Israel |

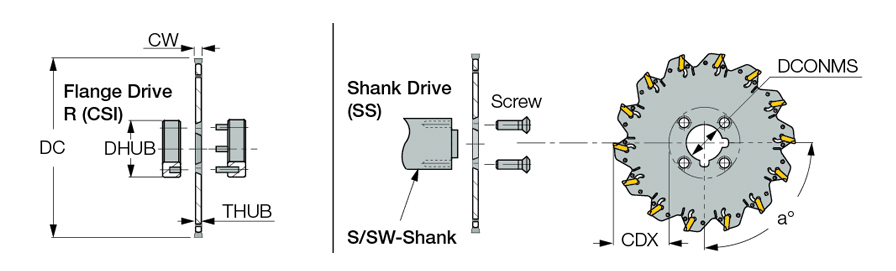

| Remarks | DHUB refers to SW/S drive shanks and R drive flange set Maximum RPM should not be exceeded |
Shipping Info
Additional Fees and Notes
0
Package Weight
0.306
