SGSA 80-3-22K-10Z-FP *

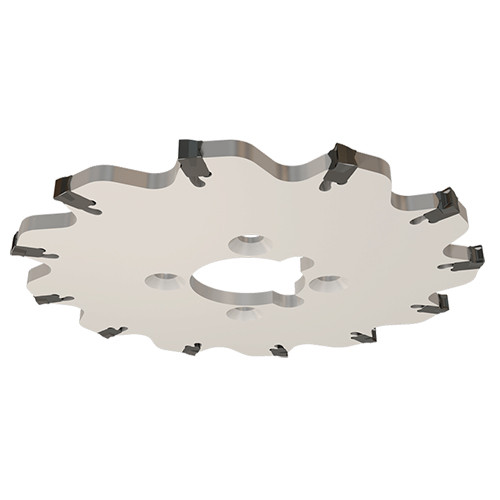

Slitting cutters Carrying GSAN self-clamped inserts.

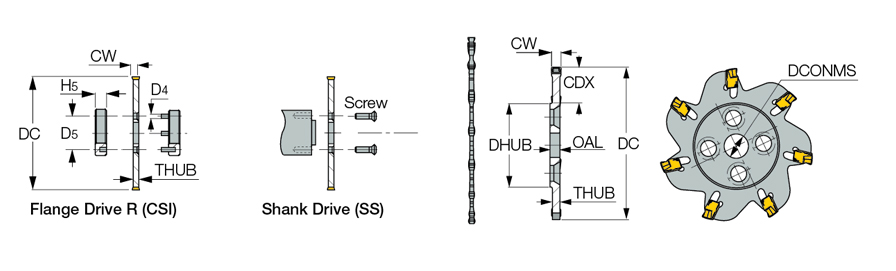

| Cutting Diameter (DC) | 80 mm | Master Insert Identification (MIID) | GSAN 3 |
| Cutting Item Count (CICT) | 10 | Application | | Side Slotting | Slitting | T Slotting | |
| Peripheral Effective Cutting Edge Count (ZEFP) | 10 | Rotational Speed Maximum (RPMX) | 995 Rev/min |
| Cutting Depth Maximum (CDX) | 16 mm | Tool Type | Slitting cutters |
| Hub Thickness (THUB) | 2.4 mm | Measurement Type | Metric |
| Cutting Width Maximum (CWX) | 3.53 mm | Body Material | Steel |
| Cutting Width Minimum (CWN) | 2.7 mm | Connection Code Machine Side (CCMS) | Disk type |
Product Features
| Family Description | Slitting cutters Carrying GSAN self-clamped inserts. | Country of Origin | Israel |
| Remarks | For LB,DBS,D4 refer to SW/S drive shanks and R drive flange set Maximum RPM may not be exceeded |
Shipping Info
Package Weight
0.306
