DIN69871 40 EM32X100E

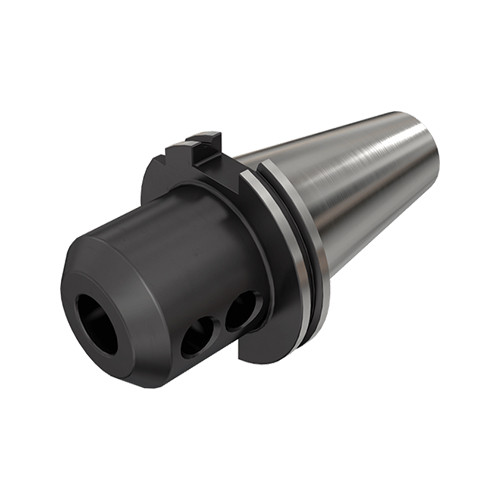

DIN 69871 form AD taper shank drill holders with DIN 6359-HE for DIN 1835 form E whistle notch shanks
| Shank Size (SS) | 40 | Connection Diameter Workpiece Side (DCONWS) | 0.559″ |
| Protruding Length (LPR) | 100 mm | Connection Retention Knob Thread Size (CRKS) | M16 |
| Body Length (LB) | 80.9 mm | Tool Type | DIN 69871 |
| Body Diameter (BD) | 49 mm | Measurement Type | Metric |
| Connection Size Work Piece Side (DCONWS) | #2 | Body Material | Steel |
| Application | CAT50 | Connection Code Machine Side (CCMS) | DIN69871 |
Product Features
| Family Description | DIN 69871 form AD taper shank drill holders with DIN 6359-HE for DIN 1835 form E whistle notch shanks | Country of Origin | Italy |
Shipping Info
Package Weight
5.587
