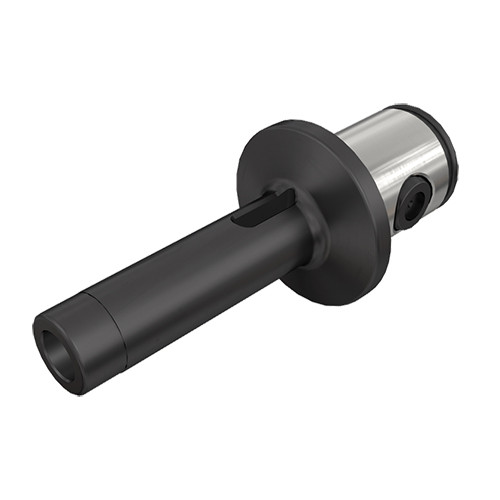

AMT MB50-MT2

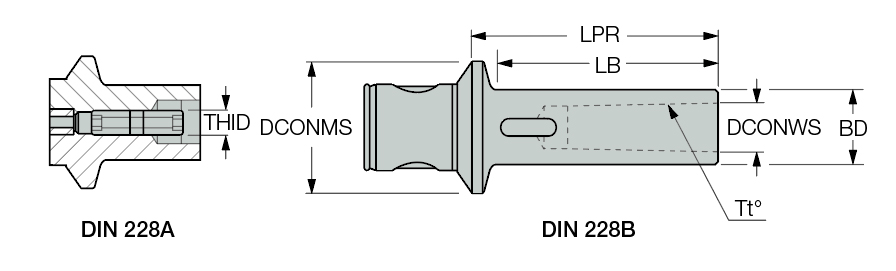

MB modular connection system with Morse taper tang DIN 228 A/B.
| Series/List # | M150 | Body Diameter (BD) | 1.181″ |
| Shank Size (SS) | MB50 | Body Length (LB) | 3.386″ |
| Tool Type | MB General Tools Holders | Connection Diameter Machine Side (DCONMS) | 1.968″ |
| Overall Length (OAL) | 3.937″ | Body Material | Steel |
| Measurement Type | Inch |
Product Features
| Family Description | MB modular connection system with Morse taper tang DIN 228 A/B. | Country of Origin | Italy |
| Remarks | Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability. |
Shipping Info
LocalField10
0
Package Weight
1.721
