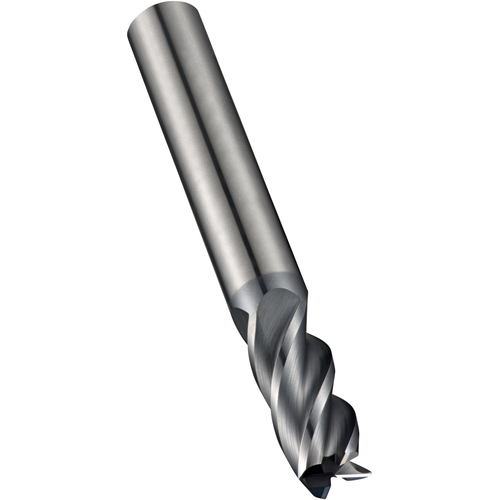

12.00 MM Dormer HM AlCrN DIN 6535 HA Shank End Mill N DORMER E-code # S76112.0
E-code # S76112.0
Additional Tariff Surcharge of 8 %
| Cutting Diameter (DC) | 12 mm | Applicable Material | | Steel | Cast Iron | |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Application | Shank Cutter Finishing |
| Overall Length (OAL) | 83 mm | Head Length (LH) | 26 mm |
| Cutting Edge Material | Carbide | Length Group | Short|Stub |
| Coating | AlCrN | Shank Standard | DIN 6535 HA |
| Flute Count (NOF) | 4 | Body Material | HM Material |
| Flute Helix Angle (FHA) | 40 Degrees | Decimal Equivalent | 0.4724″ |
| Shank Type | Round | Series/List # | C246 |
Product Features
| Family Description | E-code # S76112.0 | Country of Origin | JAPAN |
Shipping Info
Package Weight
4.200
