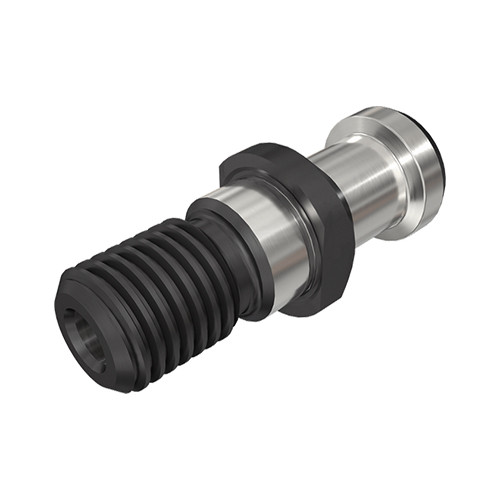

PS SK40 15 M16 DINB
SK Pull Stud with DIN 69872 Retention Knob
| Shank Size (SS) | 40 | Measurement Type | Metric |
| Body Diameter (BD) | 17 mm | Tool Type | PS BT-MAS |
| Connection Retention Knob Thread Size (CRKS) | M16 | Body Half Taper Angle (BHTA) | 75 Degrees |
| Body Length (LB) | 20 mm | Body Material | Steel |
| Overall Length (OAL) | 54 mm | Flange to Knob Length | 0.91″ |
| Application | | Collets & Accessories | | Flange to Angle Length | 0.71″ |
Product Features
| Family Description | SK Pull Stud with DIN 69872 Retention Knob | Country of Origin | Italy |

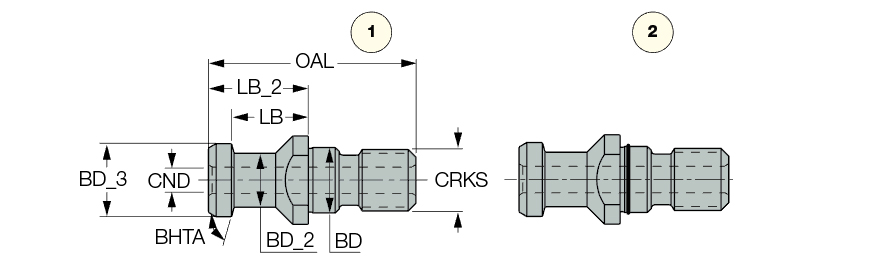

| Remarks | Coolant holes only in items with a B suffix Fig 1: Without or with coolant holes Fig 2: Without or with coolant holes and external O-ring |
Shipping Info
LocalField10
0
Package Weight
0.176
Related Documentation
