| Thread Diameter Size (TDZ) | 5/16″ | Chamfer | 3 to 5 Threads |
| Threads per Inch (TPI) | 18 | Coating | Uncoated |
| Thread Standard | NC | Flute Type | Straight |
| Overall Length (OAL) | 2-23/32″ | End Shape | Chamfer |
| Thread Cutting Part Length (THL) | 1-1/8″ | Style | Plug |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Cutting Edge Material | HSS | Series/List # | 2046 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | 5/16″ - 18 |

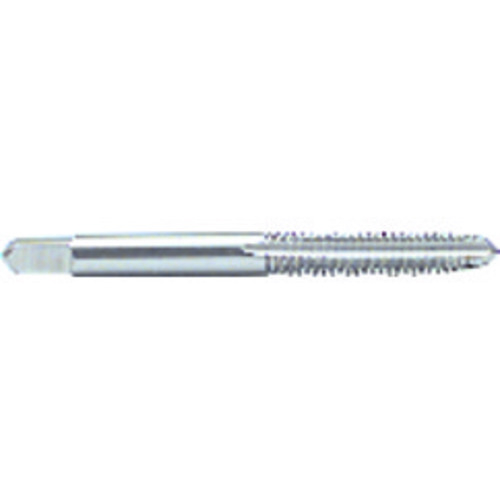

| Tool Type | General Purpose Tap |
Product Features
| Remarks | Straight Flute hand taps are used for hand tapping and machine tapping in through holes or blind holes in a wide variety of materials. |
Country of Origin | United States |
Shipping Info
Package Length
3.60000
Package Width
.40000
Package Height
.50000
Package Weight
0.05
