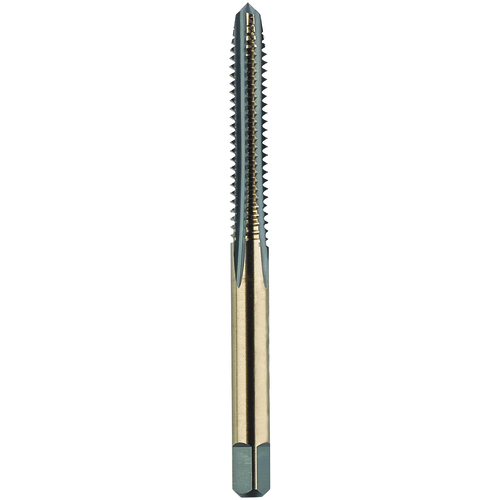

#10 NC, 24 TPI, 4 -Flute, H3 Bottoming Straight Flute Tap Series/List #114
| Thread Diameter Size (TDZ) | #10 | Tool Type | General Purpose Tap |
| Threads per Inch (TPI) | 24 | Chamfer | 1 to 2 threads |
| Thread Standard | NC | Coating | | Black Oxide | Gold Oxide | |
| Overall Length (OAL) | 2-3/8″ | Flute Type | Straight |
| Thread Cutting Part Length (THL) | 7/8″ | Style | Bottoming |
| Flute Count (NOF) | 4 | Measurement Type | Machine Screw |
| Cutting Edge Material | HSS | Series/List # | 114 |
| Thread Tolerance Class (TCTR) | H3 | Thread Size | #10 - 24 |
Product Features
| Country of Origin | USA |
Shipping Info
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.025
