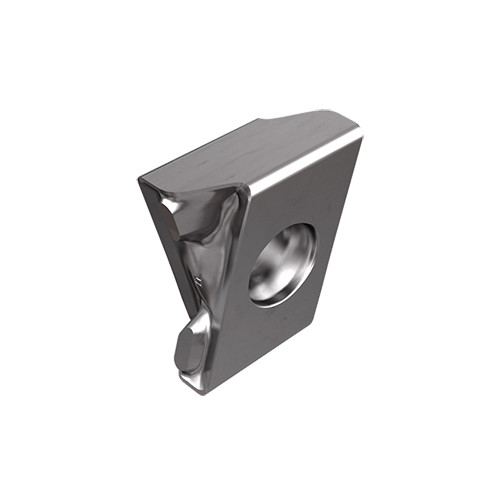

LNMT 1506PN-R HT IC950
TANGMILL Tangentially clamped inserts featuring 4 straight, right-hand cutting edges. Recommended mainly for machining cast iron.

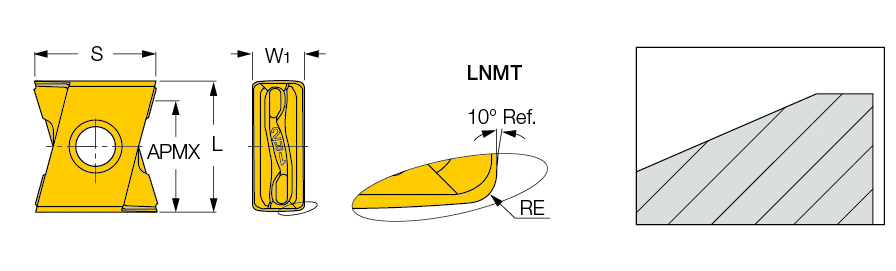

| Applicable Material | | Steel | Cast Iron | | Shape | Rectangle |
| Application | | Facing | Shouldering | Slotting | | Maximum Feed per Tooth (fz(max)) | 0.0098 ″/tooth |
| Insert Length (INSL) | 0.591″ | Cutting Direction (HAND) | Right Hand |
| Corner Radius (RE) | 0.0315″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.472″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0059 ″/tooth |
| Insert Thickness (S) | 0.548″ | Number of Cutting Edges | 4 |
| Insert Included Angle (EPSR) | 90 Degrees | Measurement Type | Inch |
| Grade | IC950 | Body Material | Carbide |
Product Features
| Family Description | TANGMILL Tangentially clamped inserts featuring 4 straight, right-hand cutting edges. Recommended mainly for machining cast iron. | Country of Origin | Israel |
| Remarks | LNMT-utility inserts, LNHT-precision inserts For mismatch as a function of cutting diameter, Click on More Info |
Shipping Info
Package Weight
0.023
