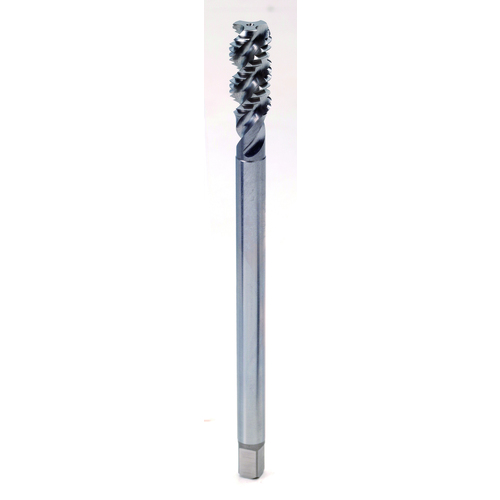

10-32 H3 152.4L SF TAP
| Thread Diameter Size (TDZ) | #10 | Tool Type | General Purpose |
| Threads per Inch (TPI) | 32 | Standard | 302 |
| Thread Standard | UNC | Chamfer | 1.5P-2P |
| Overall Length (OAL) | 6″ | Coating | Uncoated |
| Thread Cutting Part Length (THL) | 0.88″ | End Shape | Bottoming |
| Usable Length (LU) | 0.88″ | Coolant Supply Property (CSP) | External |
| Connection Diameter Machine Side (DCONMS) | 0.194″ | Measurement Type | Wire Gauge |
| Flute Count (NOF) | 3 | Flute Type | Spiral Flute |
| Flute Helix Angle (FHA) | 50 Degrees | Series/List # | T7D02 |
| Cutting Edge Material | HSS | Thread Size | #10 - 32 |
| Thread Tolerance Class (TCTR) | H3 | Shank Type | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Length
0.024255
Package Width
0.341775
Package Height
0.024255
Package Weight
0.999
