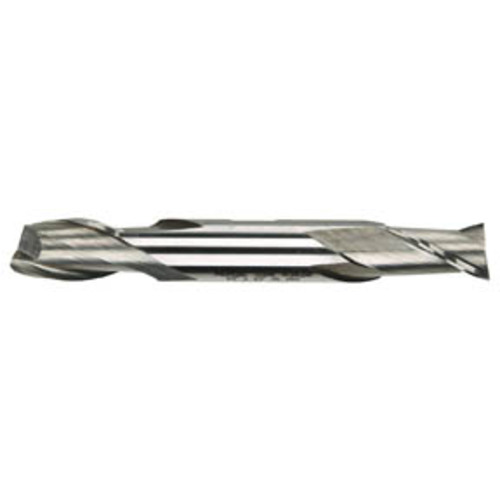

11/32″ Dia. × 3/8″ Shank × 9/16″ DOC × 3-1/2″ OAL, HSS, Uncoated, 2 Flute, 30° Helix, Plain, External, Center Cutting, Solid End Mill Series/List #1896G
SQ End Mill; 11/32″ Dia. × 9/16″ LOC × 3/8″ Shank Dia. × 3-1/2″ OAL ; 2 FL ; HSS ; Uncoated ; Series 1896
Additional Canadian Tariff of 25 %
| Cutting Diameter (DC) | 11/32″ | Tool Type | Double End |
| Connection Diameter Machine Side (DCONMS) | 3/8″ | Length Group | Regular |
| Depth of Cut Maximum (APMX) | 9/16″ | Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 3-1/2″ | Style | Finishing |
| Cutting Edge Material | HSS | Decimal Equivalent | 0.3438″ |
| Coating | Uncoated | Measurement Type | Inch |
| Flute Count (NOF) | 2 | Series/List # | 1896 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Single / Double End | Single End |
| End Shape | Center Cutting | Center Cutting | Yes |
| Usable Length (LU) | 9/16″ |
Product Features
| Country of Origin | USA |
Shipping Info
Additional Fees and Notes
0
Package Length
4.00000
Package Width
.37500
Package Height
.37500
Package Weight
0.08
