| Type | Manual Metric | Jaw Depth | 44.069 mm |
| Jaw Width | 6″ | Weight | 75 lbs |
| Jaw Opening Capacity | 9″ | Overall Length | 16.810″ |
| Jaw Height | 1.735″ | Overall Height | 4 5/8″ |
| Base Width | 7.33″ | Bed Height | 3.125″ |

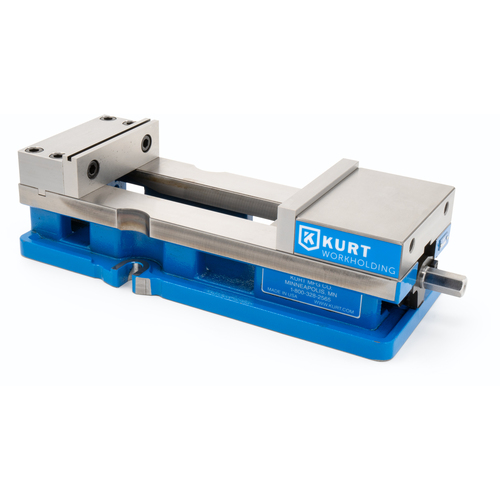

| Model No | HDM690 |
Product Features
| Remarks | •A full 9 inch opening between jaws •Less deflection of stationary jaw. Wider more stable stationary jaw equals less deflection •Stationary jaw bolts down from top. No need to remove from table to disassemble vise. Bolting the stationary from the top reduces the stress n the body and will stay flatter after assembly •Narrower body width allows more vises in the same work envelope •Taller body design equals less deflection under clamping loads •Bolts and locates directly on standard grid plates: 40mm, 50mm or 2″ •Pull type body design reduces stress in the body resulting in more accurate clamping •Quick change movable jaw. The HD platform movable jaw allows for quick change and carvability to hold that odd shaped part •Adaptable to hydraulic •Uses sine keys for alignment •Swivel base available •GrooveLock® jaw and workstop included | Country of Origin | UNITED STATES |
Shipping Info
LocalField10
Weighted Product. Additional shipping fees apply.
Shipping Notes
Weighted Item. Additional Costs Apply.
Package Length
22.20000
Package Width
10.60000
Package Height
5.60000
Package Weight
74.1
